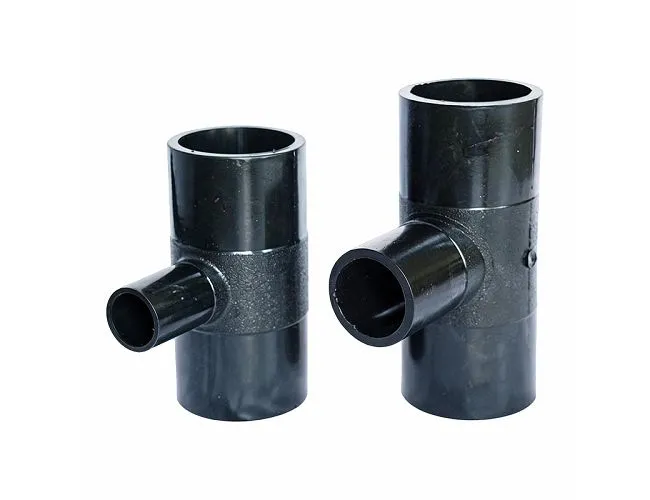

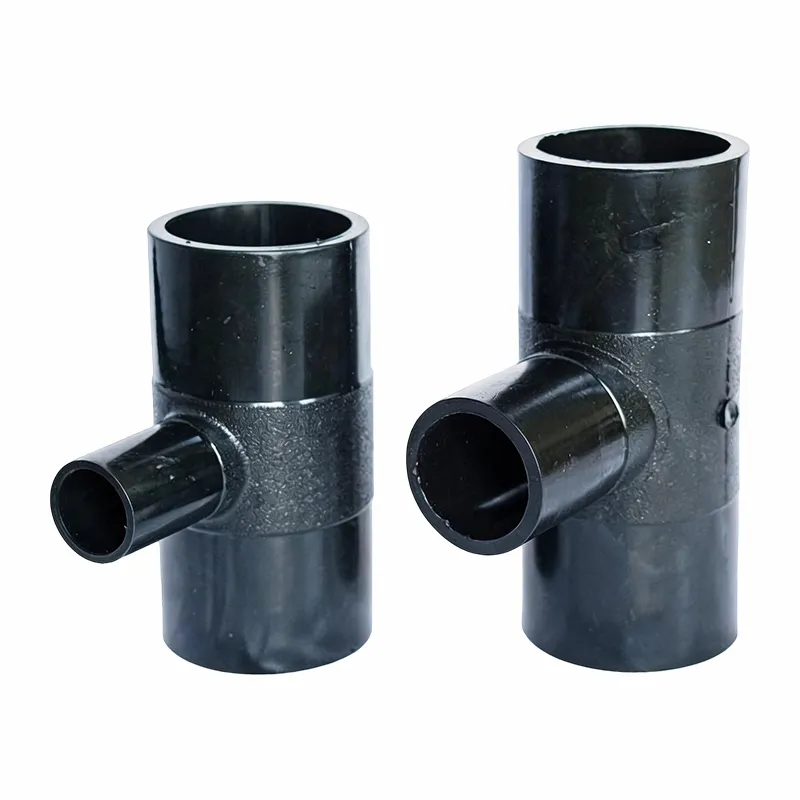

Reducer Tee Hdpe Pipe Fittings

We make these butt fusion fittings with pure virgin HDPE, no recycled blends, built only for gravity flow drainage and stormwater pipeline work.

Fusion isn't hard. Just trim the pipe and fitting ends dead flat, clean off any dirt or debris real quick, heat both surfaces evenly until they hit the right melt temp, press them together firm, and walk away.

This connection holds up to non-stop water flow and all kinds of outdoor weather, perfect for buried drainage jobs you don't want to dig back up to fix later.

Every fitting is a single solid piece, no thin welded seams or flimsy weak spots that break down first. The inner wall is finished smooth, no burrs or rough spots left over from production. The inner wall is smooth, no production burrs or rough spots to trap gunk and sediment from piling up, so you won't be dealing with clogged lines a few years down the road.

Product Advantages

Made with pure virgin HDPE, no recycled stuff mixed in. We don't use cheap fillers here, just solid raw material meant for gravity flow drainage and stormwater pipelines. These aren't general-use parts - built for buried outdoor jobs, meant to hold up long term without constant fixes.

Fusion is straightforward, no fancy skills needed. Trim pipe and fitting ends flat, wipe off dust or dirt fast. Heat both ends till they soften right, push together firm, leave alone to cool all the way. No extra tools, no glue, no gaskets, no extra parts to buy or haul to the site.

Once cooled, the joint is a permanent bond. No leaks, not even small seepage over time. No weak points at the connection, same strength as the pipe itself. Cuts down material costs and cuts installation time, no extra steps slowing down the job.

Solid one-piece construction, no welded seams that break easy. No thin, flimsy spots to wear out early. Inner wall is smooth, no burrs left from production. Doesn't trap dirt or gunk, so lines won't clog up years down the line.

Holds up to constant water flow and harsh outdoor weather. Works for buried lines you don't want to dig back up to repair. Available in SDR11 and SDR17 ratings to match standard HDPE pipes, priced simple for different project budgets.

Made on our German production lines, quick checks before shipping. Fits industrial, municipal and residential drainage work, no complicated specs to match - just reliable fittings for everyday pipeline jobs.

Polyfusion butt fusion fittings. Made with pure virgin HDPE only, no recycled material mixed in. Made for gravity flow drainage and stormwater pipelines, built for buried outdoor work that doesn't need constant repairs.

Product Specifications

ITEM	SIZE (dn-dn1)	Mark	L	L1	L2	H	SDR17	SDR13.6	SDR11
REDUCING TEE	T75X32		230	70	45	95	√		√
	T75X40		230	70	50	103	√		√
	T75X50		230	70	55	110	√		√
	T75X63		230	70	63	116	√		√
	T90X40		240	79	50	110	√		√
	T90X50		240	79	55	110	√		√
	T90X63		240	79	63	115	√		√
	T90X75		263	79	70	125	√		√
	T110X32		263	82	48	115	√		√
	T110X40		263	82	49	125	√		√
	T110X50		263	82	55	130	√		√
	T110X63		263	82	63	135	√		√
	T110X75		263	82	70	140	√		√
	T110X90		295	82	79	150	√		√
	T125X50		265	87	60	140	√		√
	T125X63		265	87	63	145	√		√
	T125X75		265	87	70	155	√		√
	T125X90		280	87	79	160	√		√
	T125X110		315	87	82	165	√		√
	T140X63		285	92	63	143	√		√
	T140X75		290	92	70	155	√		√
	T140X90		305	92	79	160	√		√
	T140X110		315	92	82	160	√		√
	T140X125		333	92	87	172	√		√
	T160*50		275	98	55	150	√		√
	T160X63		275	98	63	158	√		√
	T160X75		288	98	70	168	√		√
	T160X90		300	98	79	175	√		√
	T160X110		325	98	82	180	√		√
	T160X125		335	98	87	190	√		√
	T160X140		347	98	92	195	√		√
	T180X90		340	105	79	185	√		√
	T180X110		355	105	82	190	√		√
	T180X125		365	105	87	195	√		√
	T180X140		380	105	92	200	√		√
	T180X160		400	105	98	203	√		√
	T200X63		307	112	63	180	√		√
	T200X75		315	112	70	183	√		√
	T200X90		334	112	79	192	√		√
	T200X110		356	112	82	198	√		√
	T200X125		380	112	87	202	√		√
	T200X140		400	112	92	207	√		√
	T200X160		420	112	98	210	√		√
	T200X180		436	112	105	118	√		√

ITEM	SIZE (dn-dn1)	Mark	L	L1	L2	H	SDR17	SDR13.6	SDR11
REDUCING TEE	T225X63		355	120	63	190	√		√
	T225X75		355	120	70	197	√		√
	T225X90		355	120	79	212	√		√
	T225X110		375	120	82	215	√		√
	T225X125		425	120	87	214	√		√
	T225X140		425	120	92	218	√		√
	T225X160		425	120	98	228	√		√
	T225X180		465	120	105	232	√		√
	T225X200		465	120	112	238	√		√
	T250X90		395	129	79	225	√		√
	T250X110		395	129	82	225	√		√
	T250X125		445	129	87	230	√		√
	T250X140		445	129	92	235	√		√
	T250X160		445	129	98	240	√		√
	T250X180		485	129	105	245	√		√
	T250X200		485	129	112	252	√		√
	T250X225		535	129	120	260	√		√
	T280X110		415	139	82	240	√		√
	T280X125		465	139	87	245	√		√
	T280X140		465	139	92	250	√		√
	T280X160		465	139	98	260	√		√
	T280X180		505	139	105	265	√		√
	T280X200		505	139	112	270	√		√
	T280X225		555	139	120	275	√		√
	T280X250		555	139	129	285	√		√
	T315X90		440	150	79	260	√		√
	T315X110		440	150	82	262	√		√
	T315X125		485	150	87	262	√		√
	T315X140		485	150	92	265	√		√
	T315X160		485	150	98	272	√		√
	T315X180		530	150	105	280	√		√
	T315X200		530	150	112	285	√		√
	T315X225		575	150	120	295	√		√
	T315X250		575	150	129	302	√		√
	T315X280		640	150	139	312	√		√
	T355X90		468	164	79	275	√		√
	T355X110		468	164	82	276	√		√
	T355X125		485	164	87	285	√		√
	T355X140		485	164	92	286	√		√
	T355X160		485	164	98	295	√		√
	T355X180		555	164	105	300	√		√
	T355X200		555	164	112	308	√		√
	T355X225		610	164	120	315	√		√
	T355X280		640	164	139	335	√		√

ITEM	SIZE (dn-dn1)	Mark	L	L1	L2	H	SDR17	SDR13.6	SDR11
REDUCING TEE	T355X315		640	130	150	345	√		√
	T400X90		495	179	79	300	√		√
	T400X110		495	179	82	305	√		√
	T400X125		545	179	87	308	√		√
	T400X140		545	179	92	310	√		√
	T400X160		545	179	98	315	√		√
	T400X180		585	179	105	325	√		√
	T400X200		585	179	112	335	√		√
	T400X225		640	179	120	345	√		√
	T400X250		640	179	129	350	√		√
	T400X280		675	179	139	360	√		√
	T400X315		675	165	150	370	√		√
	T400X355		675	145	150	375	√		√
	T450X110		435	155	82	365	√		√
	T450X160		485	155	115	365	√		√
	T450X200		530	155	110	365	√		√
	T450X250		580	155	110	375	√		√
	T450X315		600	130	140	385	√		√
	T450X355		660	140	160	405	√		√
	T450X400		720	145	145	405	√		√
	T500X110		430	150	80	350	√		√
	T500X160		485	150	110	350	√		√
	T500X200		520	145	110	400	√		√
	T500X250		560	155	110	410	√		√
	T500X315		640	145	110	400	√		√
	T500X355		610	120	145	470	√		√
	T500X400		728	150	150	460	√		√
	T500X450		710	115	150	450	√		√
	T560X110		410	135	140	445	√		√
	T560X160		450	135	140	445	√		√
	T560X200		508	135	140	445	√		√
	T560X250		545	135	140	445	√		√
	T560X315		605	135	145	450	√		√
	T560X400		720	135	160	465	√		√
	T560X500		825	140	170	475	√		√
	T630X110		475	145	135	480	√		√
	T630X160		475	140	140	485	√		√
	T630X200		550	150	145	490	√		√
	T630X250		555	140	145	490	√		√
	T630X315		665	150	145	490	√		√
	T630X400		725	145	160	505	√		√
	T630X450		800	150	180	525	√		√
	T630X500		810	145	180	525	√		√

ITEM	SIZE (dn-dn1)	Mark	L	L1	L2	H	SDR17	SDR13.6	SDR11
REDUCING TEE	T710X110		500	180	160	520	√		√
	T710X160		545	180	160	520	√		√
	T710X200		568	180	165	522	√		√
	T710X250		630	180	165	522	√		√
	T710X315		681	180	165	522	√		√
	T710X400		764	180	165	522	√		√
	T710X500		864	180	165	522	√		√
	T710X630		983	180	165	525	√		√
	T800X110		505	185	170	573	√		√
	T800X160		550	185	170	573	√		√
	T800X200		606	185	170	573	√		√
	T800X250		630	185	170	573	√		√
	T800X315		719	185	170	573	√		√
	T800X400		802	185	170	573	√		√
	T800X500		902	185	170	573	√		√
	T800X630		1031	185	170	573	√		√
	T800X710		1100	185	170	573	√		√

Raw Material

Qingdao Polyfusion Machinery Co., Ltd. holds that high-performance raw materials are the fundamental prerequisite for manufacturing top-tier HDPE piping systems. In the production of all our HDPE pipes and fittings, we have always adhered to the strict standard of selecting premium raw materials from well-known manufacturers around the world. These raw materials we adopt have been widely recognized as the high-grade base materials for HDPE pipe fitting production by professionals in the plastic piping industry.

The outstanding performance and ultra-stable physical and chemical properties of these raw materials are the core driving force for our products to maintain excellent quality. It is precisely relying on the superior quality of these raw materials that our HDPE pipes and fittings have firmly established a high-quality market position in the industry, and can consistently provide our cooperative partners with reliable and high-standard piping product solutions.

Packaging & Shipping

We adopt high-strength, shock-resistant, pressure-proof and wear-resistant packaging materials, and implement classified fixed packaging for different sizes and types of fittings to avoid collision, scratch and deformation during long-distance transportation and multiple handling. All packages are clearly marked with detailed product information, batch numbers, loading and unloading notes and shipping marks, which greatly facilitates your warehousing, sorting and subsequent construction use.

We regard professional packaging as an indispensable part of product quality assurance and international delivery service. For all our HDPE pipes and fittings, we have developed customized packaging solutions tailored to product specifications, shipping modes and regional transportation requirements, fully meeting international shipping standards for sea, land and air freight.

With rigorous packaging processes and strict quality control of each packaging link, we ensure that every batch of HDPE pipe fittings is delivered to customers around the world in a perfectly intact condition. Our packaging system not only effectively isolates all kinds of transportation risks, but also optimizes the packaging volume to improve loading efficiency and save your transportation costs to the greatest extent, creating more practical value for global cooperative partners.

Quality Assurance

Qingdao Polyfusion Machinery Co., Ltd. boasts a comprehensive portfolio of authoritative certifications and approvals including ISO9001, CE, WRAS, BV, SGS and CNAS, a solid testament to our stringent quality control system and professional manufacturing capabilities. We have forged our core competitive edges in the market with premium product quality, professional and efficient one-stop service, and highly competitive pricing. Taking maximizing customer benefits as our unwavering core goal, we regard product quality as the cornerstone of the company's sustainable development and lifeblood of our brand. After years of deep cultivation and steady development in the industry, we have built a stable and high-quality global partnership network, and our cooperative relations with partners worldwide have been continuously consolidated and deepened with excellent strength and reliable reputation.
